HSTL Healthcare Troffer

Healthcare

Product Details

Manufacturer's Product Page


Spec Sheets

HSTLED 1x4 2x2 2x4 OR/SURGICAL SUITE

Features

  • Listings: IP65 (Dust Tight / Wet Location Water Jet), IP66, ISO 5
  • Lumens (approx): 2,501 - 3,000, 3,001 - 3,500, 3,501 - 4,000, 4,001 - 4,500, 4,501 - 5,000, 5,001 - 5,500, 5,501 - 6,500, 6,501 -7,000, 7,001 - 8,000, 8,001 - 9,000, 9,001 - 10,000, 10,001 - 15,000, 15,001 - 20,000, 20,001 - 25,000
  • Mounting: Recessed
  • Size: 1'x4', 2' x 2', 2' x 4'
  • Source: LED

Applications

  • Hospital / Healthcare
  • Surgical Suite

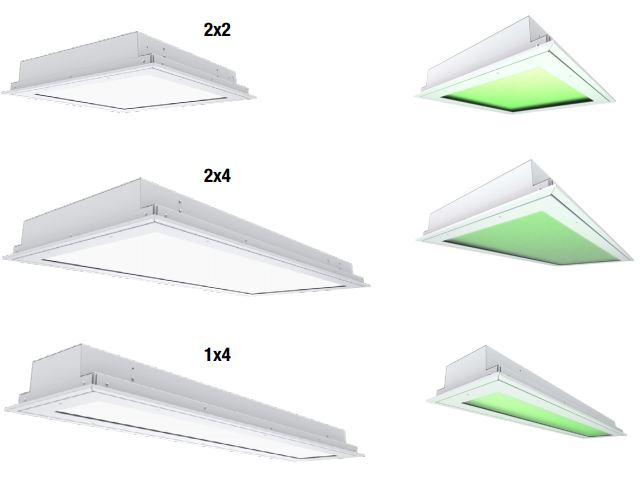

The HSTL troffer from Healthcare Lighting uses dual-color channels and optional nLight® wired and wireless controls to deliver powerful illumination and color accuracy for a medical team's visual acuity. HSTL features static white in a single channel and a color option (red, amber or green) in a second channel dually-controlled, and can be used across in surgical suites, clean rooms and exam or procedure spaces. Available with up to 10,000 lumens in the 1x4, 12,000 lumens in the 2x2 and 24,000 lumens in the 2x4, HSTL has two distribution options: asymmetric and symmetric. With surface, grid and flange mounting options, HSTL is complete with machine-welded housing, frosted acrylic and polycarbonate lens options, and an integrated occupancy sensor option.

Show more

Application Tips & Inspiration

1. Quick Ship Programs are subject to change. Products with this logo mean that only specific variations may be quick ship. Check the manufactures website for latest program.
2. DLC listings are subject to change. Products with this logo mean that only specific variations may be DLC listed. Check the latest list on the DLC website to confirm.
3. Energy Star listings are subject to change. Products with this logo mean that only specific variations may be Energy Star Listed. Check the latest list on the Energy Star website to confirm.
4. All product information is subject to change. Please see the latest specification sheets on the manufacture’s website.

↑
