QwikLink

Industrial Lighting Products (ILP)

DLC

Product Details

Manufacturer's Product Page
Brochure


Spec Sheets

Qwicklink


Additional Links

Qwiklink Brochure

Features

  • Control Devices: Sensors
  • Dynamic Features: Switchable White
  • Lumens (approx): 10,001 - 15,000, 15,001 - 20,000, 20,001 - 25,000, 25,000+, Switchable
  • Mounting: Ceiling, Surface
  • Shape: Rectangle
  • Size: 24", 48", 2', 4'
  • Source: LED

Applications

  • Hospital / Healthcare
  • Retail
  • Stairwells
  • Warehouse / Distribution Center

DLC Listings

  • QL2-12/20L/25L-U-40-XXXXX
  • QL4-22L-U-30-XXXXX
  • QL4-25/39/50L-U-30-XXXXX
  • QL2-25L-U-40-XXXXX
  • QL4-22L-U-40-XXXXX
View All

Features:

  • Versatile specification grade linear strip solution
  • Steel housing with white powdercoat finsh
  • 2ft & 4ft lengths available
  • High transmission PMMA frosted acrylic lens
  • Ceiling, wall, pendant or suspension mounting options

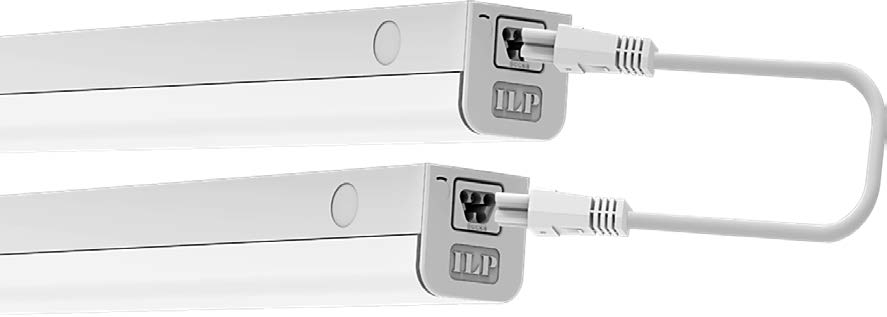

  • QWIKLINK connector allows for easy and seamless
    connection up to 64 linear feet
  • Factory set or field selectable lumen output (1,200 lm – 5,200 lm)
  • Factory set or field selectable CCT (3000K - 3500K - 4000K)
  • High Efficacy―Up to 130 lm/W
  • 10% Uplight std.
  • >80 Color Rendering Index (CRI)
  • Calculated L70 >100,000 hrs
  • 0-10V Dimmable Driver (100%-10%)
  • 120-277V Universal Voltage
  • 5 Year Warranty
  • ETL Listed for Damp & Dry Location
  • DesignLights Consortium® Premium Qualified Luminaire
Show more

Application Tips & Inspiration

1. Quick Ship Programs are subject to change. Products with this logo mean that only specific variations may be quick ship. Check the manufactures website for latest program.
2. DLC listings are subject to change. Products with this logo mean that only specific variations may be DLC listed. Check the latest list on the DLC website to confirm.
3. Energy Star listings are subject to change. Products with this logo mean that only specific variations may be Energy Star Listed. Check the latest list on the Energy Star website to confirm.
4. All product information is subject to change. Please see the latest specification sheets on the manufacture’s website.

↑
