Square Canopy

Industrial Lighting Products (ILP)

DLC

Product Details

Manufacturer's Product Page


Spec Sheets

Square Canopy

Features

  • Control Devices: Sensors
  • Listings: IP65 (Dust Tight / Wet Location Water Jet), Wet Location
  • Lumens (approx): 5,001 - 5,500, 5,501 - 6,500, 7,001 - 8,000, 8,001 - 9,000
  • Mounting: Ceiling, Surface
  • Retrofit: Yes
  • Shape: Square
  • Size: 10"
  • Source: LED

Applications

  • Outdoor / Exterior
  • Garage / Parking Structure
  • Cold Storage
  • Canopy

DLC Listings

  • CP-5L-HV-50
  • CP-7L-U-40[Blank, MWS, PCU]
  • CP-7L-U-50-PG[Blank, MWS, PCU]
  • CP-5L-HV-40
  • CP-9L-U-57-PG[Blank, MWS, PCU]
View All

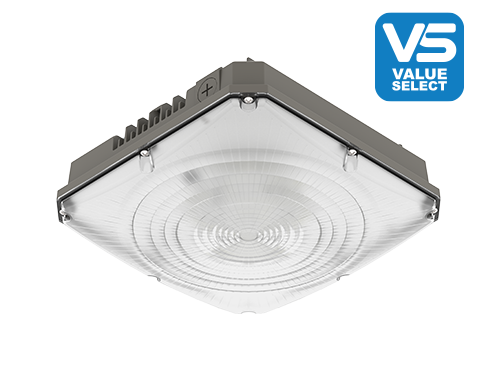

LED Surface Canopy:

  • Rugged low-profile die-cast aluminum housing
  • UV stabilized and impact resistant polycarbonate lenses
  • Up to 3% uplight eliminates cave effect
  • Quick mounting plate with hook on feature allow for easy installation
  • Three 1/2″ coin plugs on sides for conduit or photocell
  • 4000K Color Temperature; Consult Factory for Alternate CCTs
  • >80 Color Rendering Index (CRI)
  • 0-10V Dimmable Driver to 10%
  • IP65 Rated Luminaire
  • 120-277V Universal Voltage or 347-480V High Voltage
  • Optional Microwave sensor for 360° occupancy detection
  • Optional Universal Pencil Photocell
  • 5 Year Warranty
  • UL Listed for Wet Locations
  • DesignLights Consortium® Premium Qualified Luminaire
Show more

Application Tips & Inspiration

LEED - Light Pollution Reduction for Exterior Lighting

LEED - Light Pollution Reduction for Exterior Lighting

To minimize light trespass from the building and site, reduce sky-glow to increase night sky access, improve nighttime visibility through glare reduction and reduce development impact from lighting on nocturnal environments.

Dark Sky Friendly

Dark Sky Friendly

Modern society requires outdoor lighting for a variety of needs, including safety and commerce. IDA recognizes this but advocates that any required lighting be used wisely.  easy visual guide to understand the differences between unacceptable, unshielded light fixtures and those fully shielded fixtures that minimize skyglow, glare and light trespass.

1. Quick Ship Programs are subject to change. Products with this logo mean that only specific variations may be quick ship. Check the manufactures website for latest program.
2. DLC listings are subject to change. Products with this logo mean that only specific variations may be DLC listed. Check the latest list on the DLC website to confirm.
3. Energy Star listings are subject to change. Products with this logo mean that only specific variations may be Energy Star Listed. Check the latest list on the Energy Star website to confirm.
4. All product information is subject to change. Please see the latest specification sheets on the manufacture’s website.

↑
