VRTL Vandal-Resistant Recessed LED Troffer

Lithonia Lighting

DLC

Product Details

Manufacturer's Product Page
Brochure


Spec Sheets

VRTL

Features

  • Listings: IP65 (Dust Tight / Wet Location Water Jet)
  • Lumens (approx): 4,501 - 5,000, 5,001 - 5,500, 5,501 - 6,500, 6,501 -7,000, 7,001 - 8,000, 8,001 - 9,000, 9,001 - 10,000, 10,001 - 15,000
  • Mounting: Surface
  • Size: 1'x4', 2' x 2', 2' x 4'
  • Source: LED

Applications

  • Harsh Environments &/or Hazardous
  • Vandal resistant
  • Behavioral Healthcare
  • Dormitory
  • Gymnasium

DLC Listings

  • VRTL [All trim types] L48 5000LM [All door frames] AP125FL [MVOLT, 120, 277] [EZ1, GZ1] 30K 80CRI [All options excluding MSE sensors] [All finishes]
  • VRTL [All trim types] L48 7000LM [All door frames] AP125FL [MVOLT, 120, 277] [EZ1, GZ1] 40K 80CRI [All options excluding MSE sensors] [All finishes]
  • VRTL [All trim types] L48 5000LM [All door frames] AP125FL [MVOLT, 120, 277] [EZ1, GZ1] 40K 80CRI [All options excluding MSE sensors] [All finishes]
  • VRTL [All trim types] L48 5000LM [All door frames] AP125FL [MVOLT, 120, 277] [EZ1, GZ1] 35K 80CRI [All options excluding MSE sensors] [All finishes]
  • VRTL [All trim types] L48 7000LM [All door frames] AP125FL [MVOLT, 120, 277] [EZ1, GZ1] 35K 80CRI [All options excluding MSE sensors] [All finishes]
View All

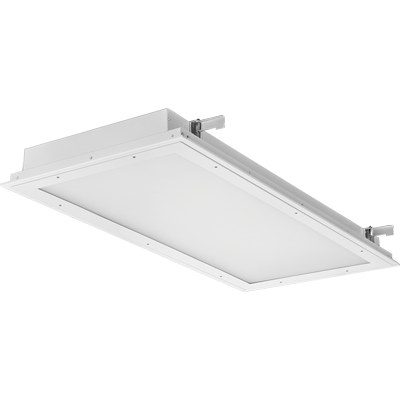

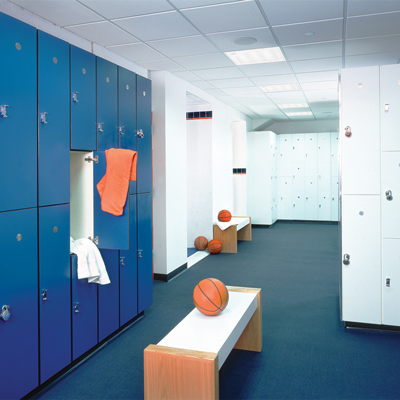

Specially designed for installations prone to vandalism, the VRTL LED recessed troffer is ideal for locker rooms, schools, isolated areas and other applications prone to negligence or abuse. The VRTL LED is available in three sizes including 1’x4’, 2’x2’ and 2’x4’ and is suitable for both flange and grid installations. The fixture housing is quality construction made from 20-gauge cold-rolled steel. All CRS parts are finished with electrostatically deposited, thermally set polyester powder paint after fabrication. Built tough, a one-piece, inset door is made of heavy duty, 18-gauge steel and includes tamper resistant fasteners. A polycarbonate lens, available in two thickness options, further protects the fixture from abuse while still enhancing general illumination.

Show more

Application Tips & Inspiration

1. Quick Ship Programs are subject to change. Products with this logo mean that only specific variations may be quick ship. Check the manufactures website for latest program.
2. DLC listings are subject to change. Products with this logo mean that only specific variations may be DLC listed. Check the latest list on the DLC website to confirm.
3. Energy Star listings are subject to change. Products with this logo mean that only specific variations may be Energy Star Listed. Check the latest list on the Energy Star website to confirm.
4. All product information is subject to change. Please see the latest specification sheets on the manufacture’s website.

↑
